XT² 12G SDI + Gigabit Fiber Optic Full SET 500m

€ 600,00 / 5 days rental. (ex. VAT)
  • Description

    The USGXT² 12G-SDI + Gigabit optical extender is a tour grade solution for extending 12G 4K signals together with a Gigabit Ethernet (for TCP/IP networks, router extension, Dante™ digital audio transmission, etc..) channel over long distances using Neutrik opticalCON DUO fiber cable or conventional multimode or singlemode LC fiber.

    This SDI ethernet fiber extenderSET is your perfect partner for combining the highest serial digital video quality together with a Gigabit interface.

    This means you can get both signals over one duplex fiber optic cable which allows for unlimited applications.TheUSGXT² provides a true Plug&Play solution. No fooling around with settings, just plug in and off you go.

    The small dimensions of transmitter and receiver (200mm x 150mm x 61mm) allow for easy handling and storage. On the back we fitted our well known threaded truss hole for stand- or truss mounting.

    With optimal ruggedness and reliability in mind, you'll find all Neutrik™ connectors on the USGXT².

    The etherCON chassis also accepts standard RJ45 connectors and the opticalCON DUO chassis is compatible with standard LC Duplex multimode and singlemode cable.

    Connect your Gigabit network to the USGXT² etherCON port using standard RJ45 cables or ruggedized etherCON cables for more reliability and strength as these are safely locked with a protection latch to avoid accidental disconnection from the unit. The USGXT² is also compatible with Dante™ signals.

    The 12G transmission bandwidth allows for maximum 4K60 image quality, according to SMPTE ST-2082. The transmitter provides a loop-out for local monitoring and the receiver features a dual 12G output.

    Power on the XT² extenders is provided by a Neutrik powerCON TRUE1 TOP inlet ensuring a safe and reliable connection.

    Technical specifications

    • 12G-SDI 3840x2160p 60Hz
    • 10bit
    • 4:2:2
    • Supported
    • Singlemode
    • 259M, 292M, 296M, 434M-B, 274M, 425M, ST-2081, ST-2082
    • Neutrik etherCON CAT5E Female
    • Neutrik opticalCON DUO / Standard LC
    • Neutrik powerCON TRUE1 TOP Female
    • 2x BNC SDI Outputs
    • BNC SDI input / 1x BNC SDI Loop
    • 200mm (L) x 150mm (W) x 61mm (H)
    • 100-240V
    • 0°C - 50°C

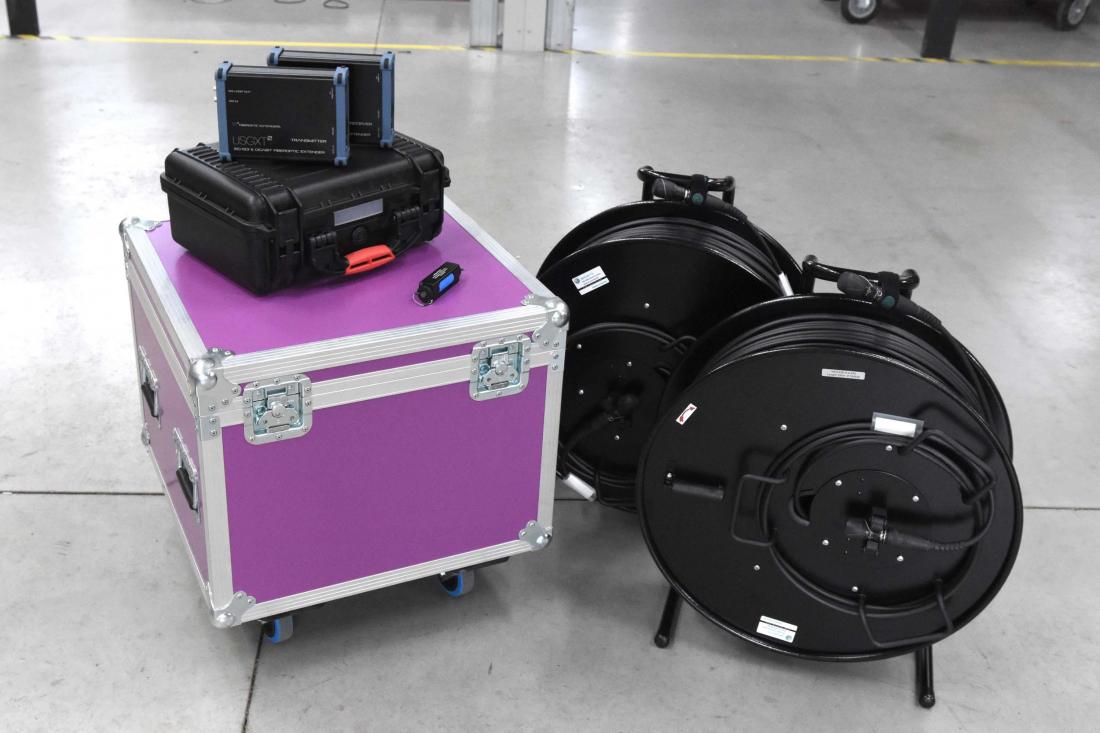

    Included

    • 1x USGXT²-TX (Transmitter) incl. powerCON cabel (+-1m)
    • 1x USGXT²-RX (Receiver) incl. powerCON cabel (+-1m)
    • 2x Neutrik OpticalCON DUO X-TREME Singlemode 250m (On Schill HT582 Drum with +- 4m auxiliary cable)
    • 1x Neutrik OpticalCON DUO Coupler Singlemode


    Attachments

  • PURCHASE
    • Direct Purchase

      STAKE5.be has a direct purchasing position for this material, so we can offer competitive prices.

      • 100% brand new
      • On order
      Price on request
